  • Product description: HUAWEI OSN902 (OSN902 for short) is a WDM transmission platform customized based on Data Center Interconnect (DCI) requirements and mainly applies to DCI scenarios. HUAWEI M201 supports access of 10G
  • INQUIRY

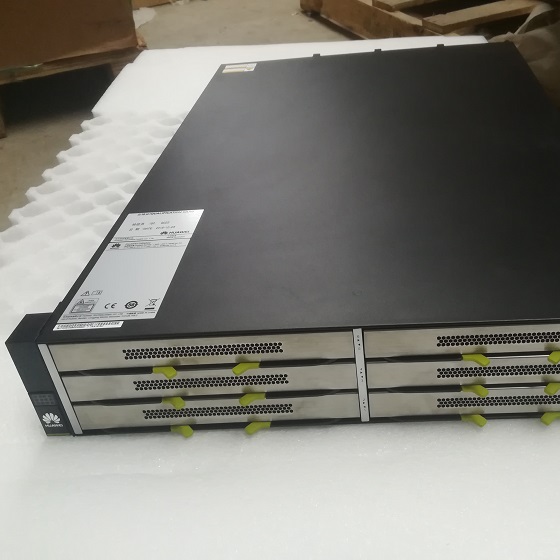

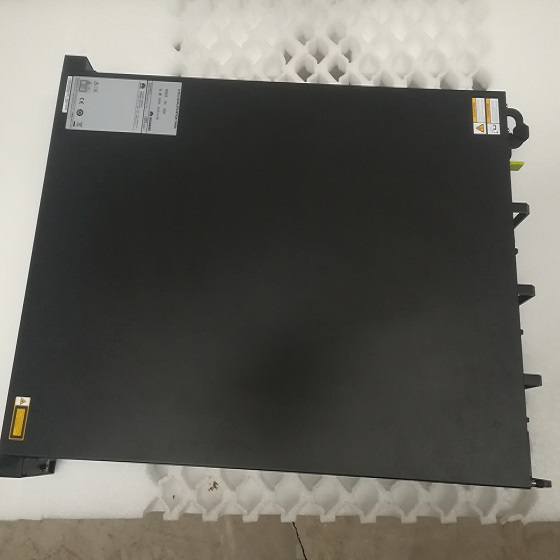

HUAWEI OSN902 (OSN902 for short) is a WDM transmission platform customized based on Data Center Interconnect (DCI) requirements and mainly applies to DCI scenarios.
OSN902 supports access of 10GE/40GE/100GE services and a maximum single-wavelength capacity of 200 Gbit/s.
OSN902 provides multiple open interfaces. DCI users can perform secondary development to integrate this product's management into data center management systems.

Table 1 Functions and features of the HUAWEI M201 board (Line Mode)

Function and Feature Description
Basic function Mutual conversion between 10GE/40GE/100GE signals and OTU4/OTUC2 signals
Client-side service type
  • 10GE LAN: Ethernet service at the rate of 10.31 Gbit/s
  • 40GE: Ethernet service at the rate of 41.25 Gbit/s
  • 100GE: Ethernet service at the rate of 103.125 Gbit/s
OTN function
  • Provides OTU4/OTUC2 ports on the WDM side.
  • Uses the frame formats and overhead processing methods defined in ITU-T G.709.
  • Supports the PM function at the ODUk (k = 2e, 3, 4, or C2) layer.
  • Supports the SM function at the OTUk (k = 4 or C2) layer.
WDM specifications Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function Supports tuning of the optical signals output on the WDM side within the range of 80 wavelengths in C-band at a 50 GHz channel spacing.
ESC Supported
PRBS
  • Supported when the client service type is 10GE/40GE
  • Supported in the WDM side
LPT Supported only when the client-side service type is 10GE
Error correction coding
  • RS-FEC coding is supported when the client-side service type is 100GE.
  • SDFEC2 coding is supported when the WDM-side port works in 100G_QPSK mode.
  • SDFEC coding is supported when the WDM-side port works in 200G_16QAM mode.
    NOTE:

    RS-FEC is enabled for 100GBASE-SR4 optical modules and disabled for other modules by default.

Performance and alarm monitoring
  • Monitors BIP8 bytes (burst mode) to help locate line faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, operating temperature, and optical power of a laser.
  • Supports the Ethernet RMON function.
Regeneration board M201
ALS Supported on the client side
Test frame Supported only when the client-side service type is 100GE
Delay measurement (DM) Supported
Protection scheme
  • Client 1+1 protection
  • Intra-board 1+1 protection
  • Optical line protection
Ethernet service encapsulation mode
  • 10GE LAN: bit transparent mapping (11.1G)
  • 40GE: GE(TTT-GMP)
  • 100GE: 100GE(GMP)
Loopback
  • WDM-side and client-side loopback:
    • Inloop and outloop are supported on both the WDM and client sides.
    • The client-side loopback is not supported when 10GE services are received on the client side.
  • Channel loopback:
    • Inloop and outloop are supported on both the WDM and client sides.
    • Client-side channel loopback: It is supported only when 10GE services are received on the client side.
    • WDM-side channel loopback: The ODU4 channel loopback is supported only when 10GE/40GE services are received and the 200G_16QAM mode is used on the WDM side.


Table 2 Functions and features of the HUAWEI M201 board (Relay Mode)
Function and Feature Description
Basic function The board is used in an electrical REG station in the system to implement electrical regeneration of optical signals.
Regenerating rate
  • OTU4: OTN service at a rate of 111.81 Gbit/s
  • OTUC2: OTN service at a rate of 211.45 Gbit/s
OTN function
  • Provides OTU4/OTUC2 ports on the WDM side.
  • Uses the frame formats and overhead processing methods defined in ITU-T G.709.
  • Supports the PM function at the ODUk (k = 2e, 3, 4, or C2) layer.
  • Supports the SM function at the OTUk (k = 4 or C2) layer.
WDM specifications Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.
ESC Supported
PRBS Not supported
LPT Not supported
Performance and alarm monitoring
  • Monitors BIP8 bytes (burst mode) to help locate line faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, operating temperature, and optical power of a laser.
ALS Not supported
Test frame Not supported
Delay measurement (DM) Not supported
Protection scheme Not supported
Loopback Not supported
