H901ATED

We can provide Huawei's latest 50G PON products, including symmetric versions of 50G PON, and offer third-party 50G PON compatible solutions. If you have testing requirements for ONU chips or third-party ONU products, please send your requirements to my email: jason.liu@dewuit.com

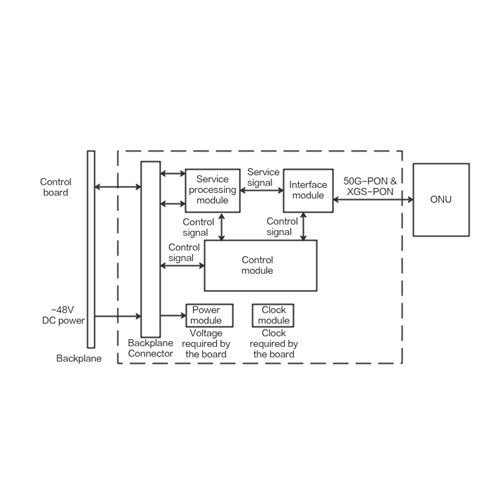

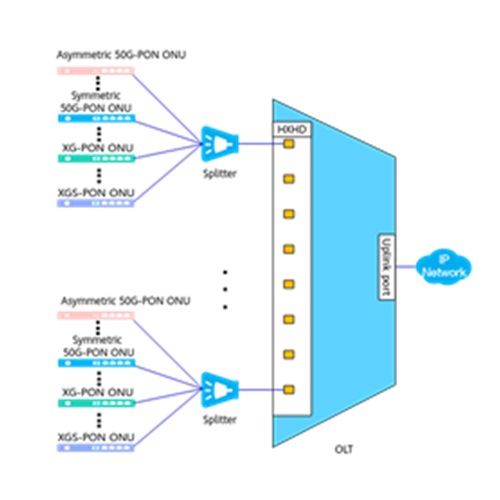

The board is an 8-port asymmetric 50G PON & XGS-PON &GPON combo OLT interface board. It works with ONUs to provide asymmetric 50G PON \ XGS-PON\ GPONservice access.

Ports on the board support asymmetric/asymmetric 50G PON & XGS-PON &GPON access.

Port quantity:8

Port rate:

Asymmetric 50G PON upstream/downstream channel: 24.8832/49.7664 Gbit/s

XGS-PON upstream/downstream channel:9.953/9.953 Gbit/s

XG-PON upstream/downstream channel:2.488/9.953 Gbit/s

Supported ONU types:

Asymmetric 50G-PON: 50G/25G (downstream rate/upstream rate)

XGS-PON: 10G/10G (downstream rate/upstream rate)

XG-PON: 10G/2.5G (downstream rate/upstream rate)

Maximum number of MAC addresses:131072

Maximum distance difference between 2 ONUs under the same PON port (board capability) [km]:40KM
